BeadBuster

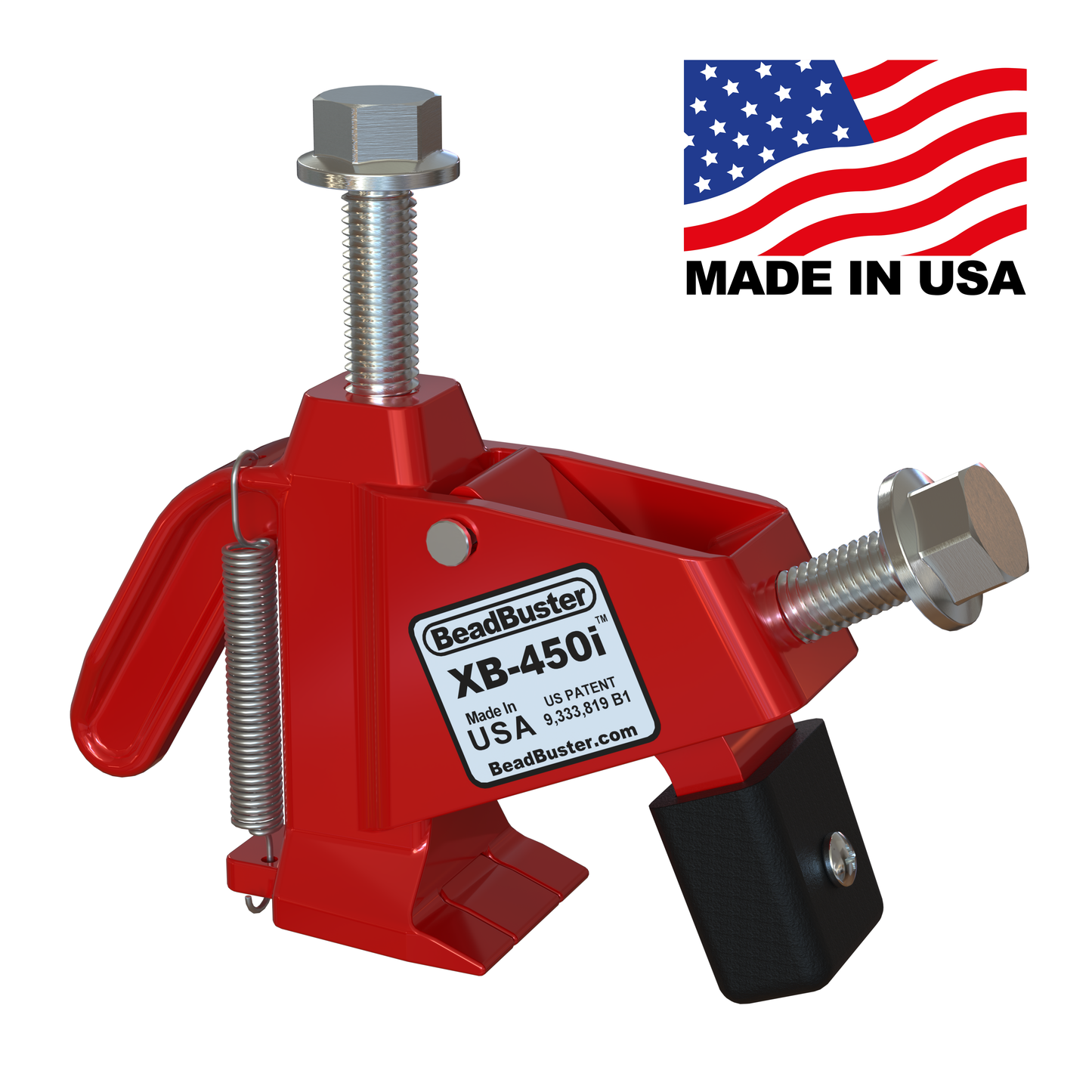

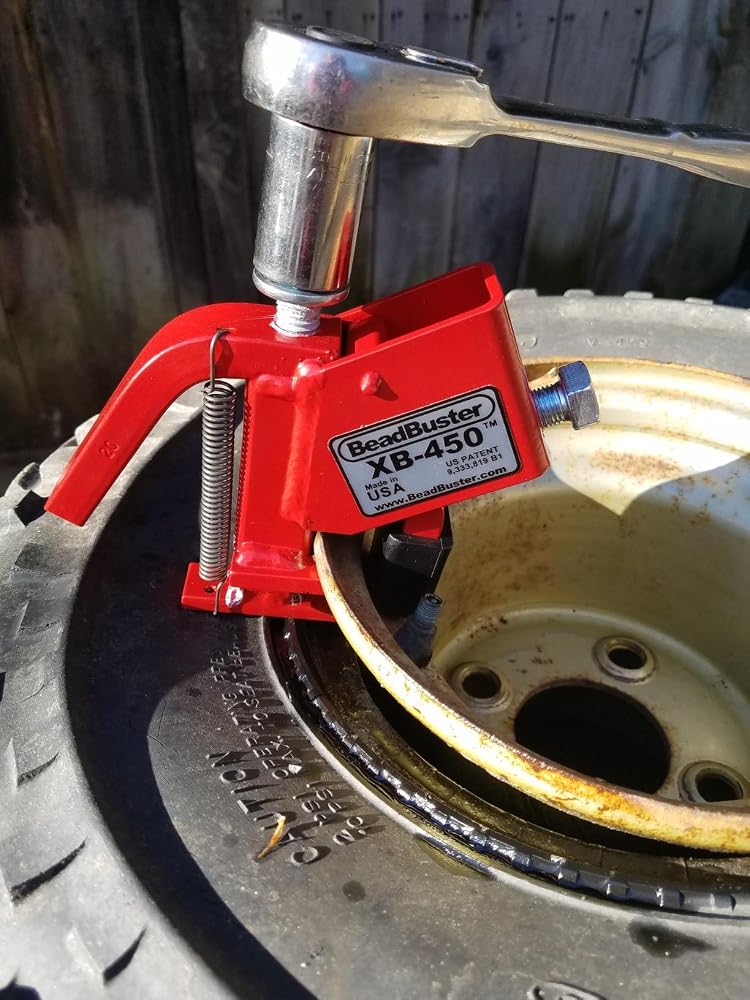

XB-450i Tire Bead Breaker (MADE-IN-USA for Go-Karts/ATV/Motorcycle / 4x4 / Truck/Auto/Lawn Mower)

XB-450i Tire Bead Breaker (MADE-IN-USA for Go-Karts/ATV/Motorcycle / 4x4 / Truck/Auto/Lawn Mower)

Regular price $149.00 USD
Regular price Sale price $149.00 USD
Sale Sold out
Shipping calculated at checkout.

All-Purpose Tire Bead Breaker
FREE SHIPPING!
For use on:

  • Any 1-Pc Wheel that uses a 32" or smaller Tire
  • ATV's, UTV's (aka. Side x Side's)
  • Motorcycles: Street & Dirt, Scooters
  • Cars: Passenger & Race Cars (ie. Sprint, Dirt Track)
  • Trucks, 4x4's, Jeeps
  • Trailers
  • Lawn Mowers, Garden Tractors
  • Go Karts, 1/4 Midgets
  • Light Aircraft

BEADBUSTER XB-450i FEATURES:

  • Proudly Made in USA
  • Premium Build Quality, 3 Year Warranty
  • Tool Body & Ram Foot made from Hardened Chrome-Moly Steel (AISI 4140, HRC 30)
  • Investment Casting Tool Body & Ram Foot
  • Custom Grade 8 Bolts
  • Crowned Bolt Tips prevent mushrooming and thread damage
  • Custom Alloy Steel Clevis Hinge Pin
  • Polyester Powder Coat Finish
  • Padded Clamp Arm (will not scratch or dent rims)
  • Patented Design

>> Learn more about the BeadBuster XB-450i Innovative Features.


SPECIFICATIONS:

  • Weight: 3.0 lbs
  • Size: 7″ x 5.8″ x 1.9″
  • Max Rim Lip Width (clamp opening): 1.70″
  • Max Rim Lip Thickness: 0.63″
  • Rim Diameter: Any
  • Rim Width: Any
  • Rim Material: Any
  • Max Tire OD: 32"
  • Max Ram Extension (throw): 1.438″ (see diagram)
  • Max Clamp Force: 4.2 tons
  • Max Ram Force: 9.0 tons

>> SEE DIAGRAMS AND DEFINITIONS OF TIRE & WHEEL FEATURES <<

DETAILS:

The BeadBuster XB-450i is an updated design which includes Premium Investment Cast construction from hardened 4140 Chrome-Moly Steel, custom Grade-8 Bolts with crowned tips, and extra ram thread engagement length (1").  The removable clamp arm can be swapped with other accessory clamp arms for specialty applications.

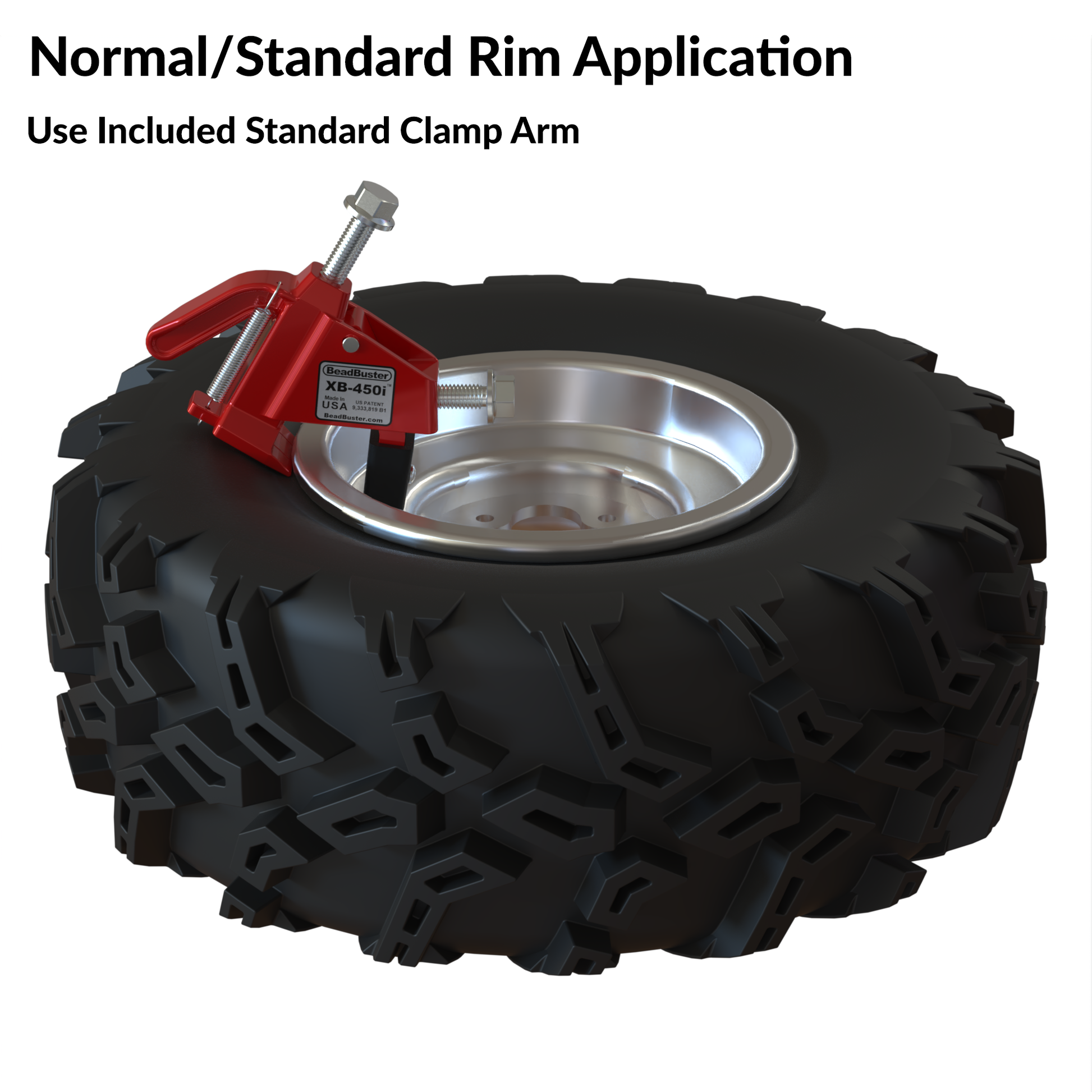

With the home mechanic and trail rider in mind, it was specifically designed for difficult-to-remove ATV tires, but we soon realized that it worked just as well on just about every kind of tire there is. No adjustment is needed for different tire/wheel sizes. The portable bead breaker is small and perfect for stashing in your glove box or tool box. Save time, money, and frustration by quickly and easily changing your own tires whenever, and wherever you want. All of our bead breakers come with FREE Shipping. (USA only).

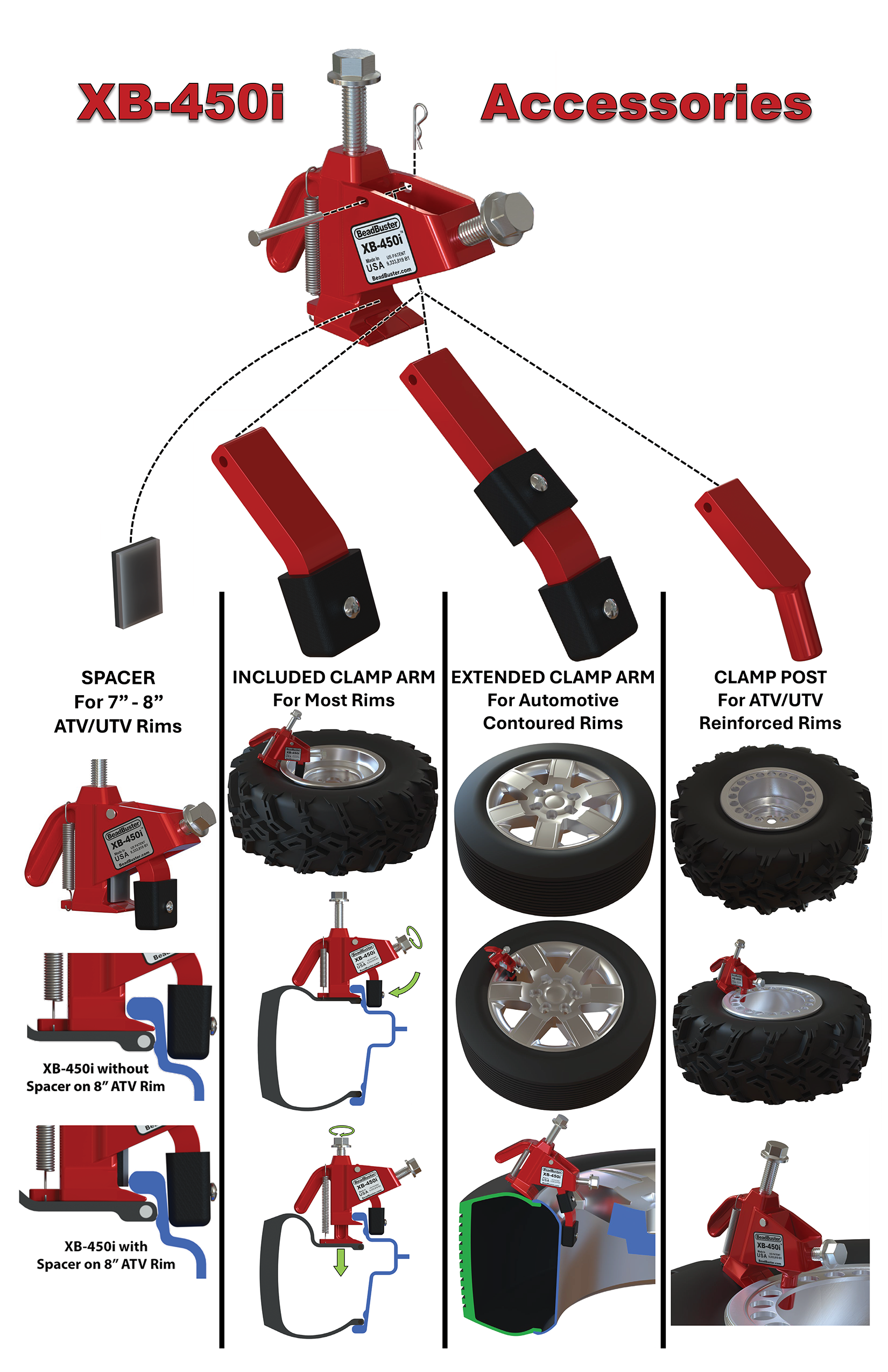

SPECIAL APPLICATIONS:

  • ATV/UTV REINFORCED RIMS

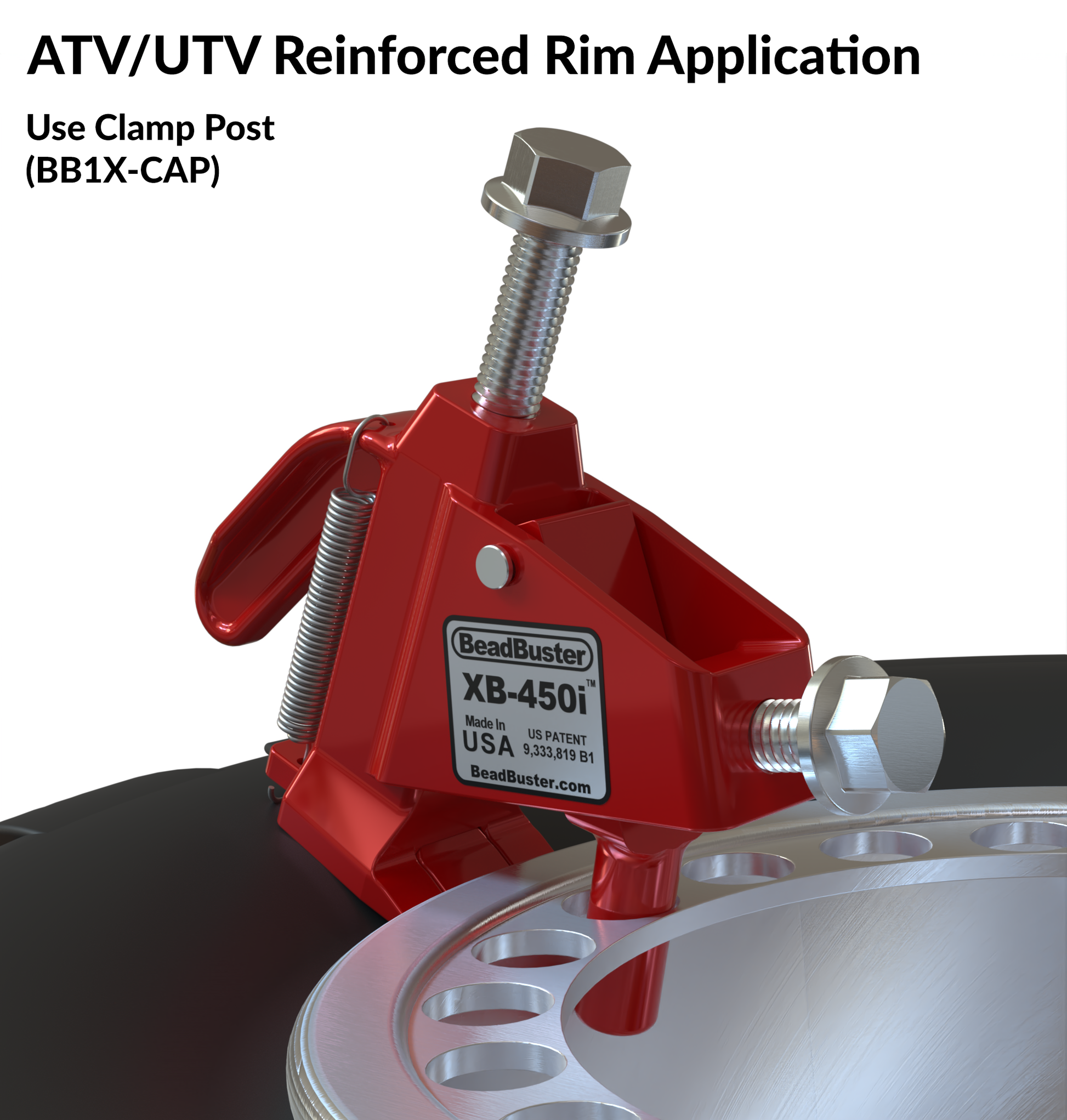

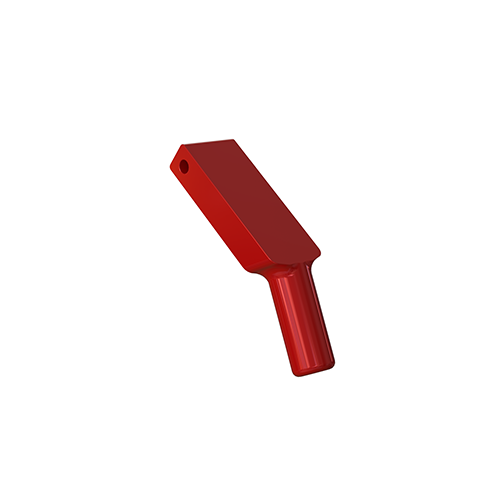

    The accessory Clamp Post (BB1X-CAP) is required for use with ATV/UTV Reinforced Rims that have a reinforcing ring (aka "rock ring"), such as Kawasaki KFX OEM wheels, and certain aftermarket Baja racing wheels. Reinforced Rims look similar to Bead Locks, but should not be confused.
  • 7" & 8" ATV RIMS
    The BeadBuster XB-450i was designed for use on the most common Diameters of ATV/UTV Rims: 9″ and larger. Smaller rims (7″ & 8″) have a different and shallower lip profile. Use on these rims may cause damage to the tool and/or wheel as the feet can catch on the bead retainer. However, the tool can be effectively used on these smaller rims with a spacer (BB1-SPCR) that we sell. Its a small magnetic pad that effectively shortens the feet for small rims. Damage to the tool as a result of use on these smaller rims without the spacer voids the warranty.  This only applies to 7" & 8" AT class wheels.  Small Lawn Mower and Go-Kart wheels do not need the spacer.

IMPORTANT NOTES:

  1. A 3/4″ wrench is required to drive the clamp and ram bolts.  Hand wrenches will work, power tools are recommended.  You can use an impact wrench, but use caution with a 1/2″ impact to not over-torque the bolts.

  2. Tire Irons are required to finish the job of removing the tire from the rim.
View full details

Spare Parts for XB-450i Tire Bead Breaker (MADE-IN-USA for Go-Karts/ATV/Motorcycle / 4x4 / Truck/Auto/Lawn Mower)

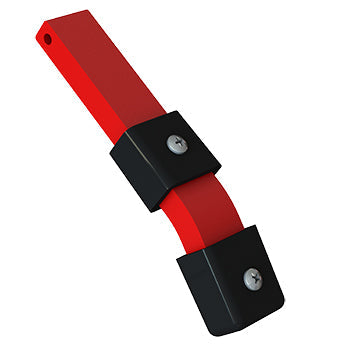

EXTENDED CLAMP ARM (BB1X-CAE)
$30.00
EXTENDED CLAMP ARM (BB1X-CAE)
Read More
CLAMP ARM POST (BB1X-CAP)
$20.00
CLAMP ARM POST (BB1X-CAP)
Read More
XB-450i SPACER (BB1-SPCR)
$5.00
XB-450i SPACER (BB1-SPCR)
Read More
SPARE RAM FOOT (BB1X-RF)
$20.00
SPARE RAM FOOT (BB1X-RF)
Read More

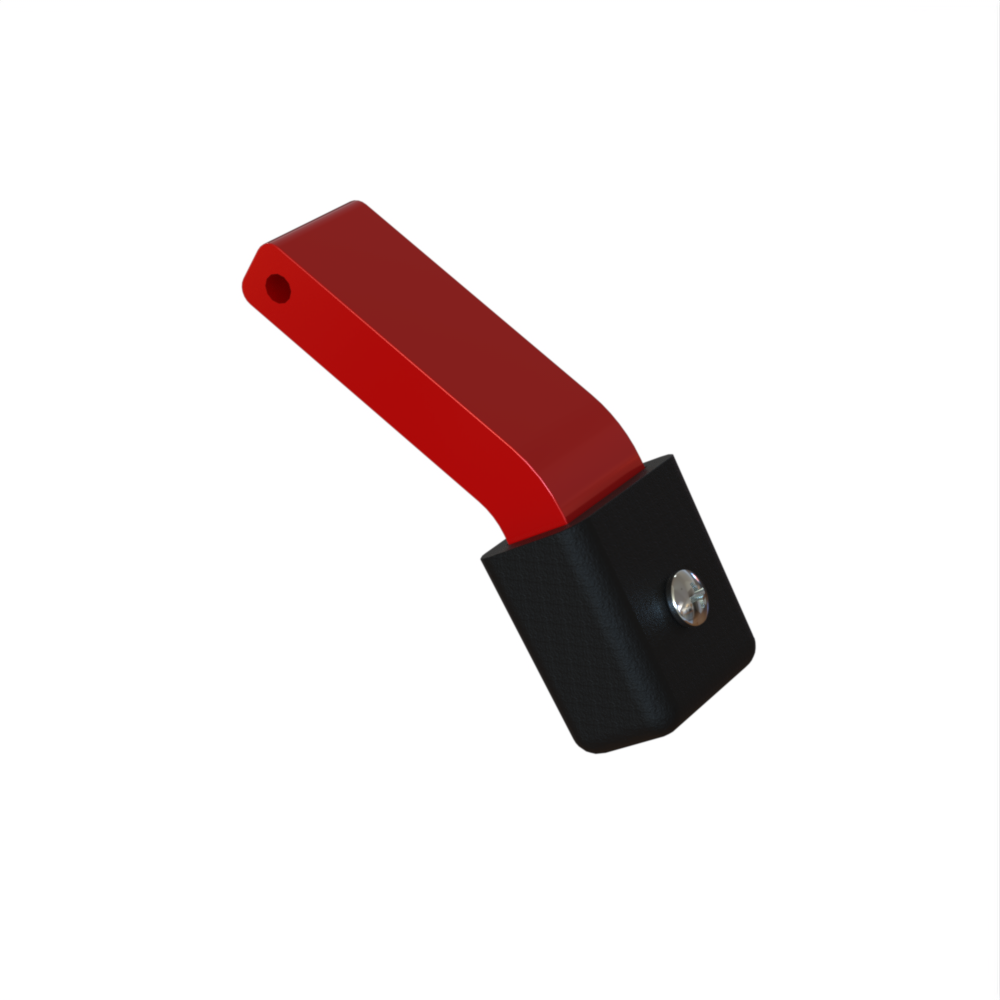

CLAMP ARM (BB1X-CA)
$20.00
CLAMP ARM (BB1X-CA)
Read More
SPARE CLAMP PAD (BB1-CP)
$5.00
SPARE CLAMP PAD (BB1-CP)
Read More

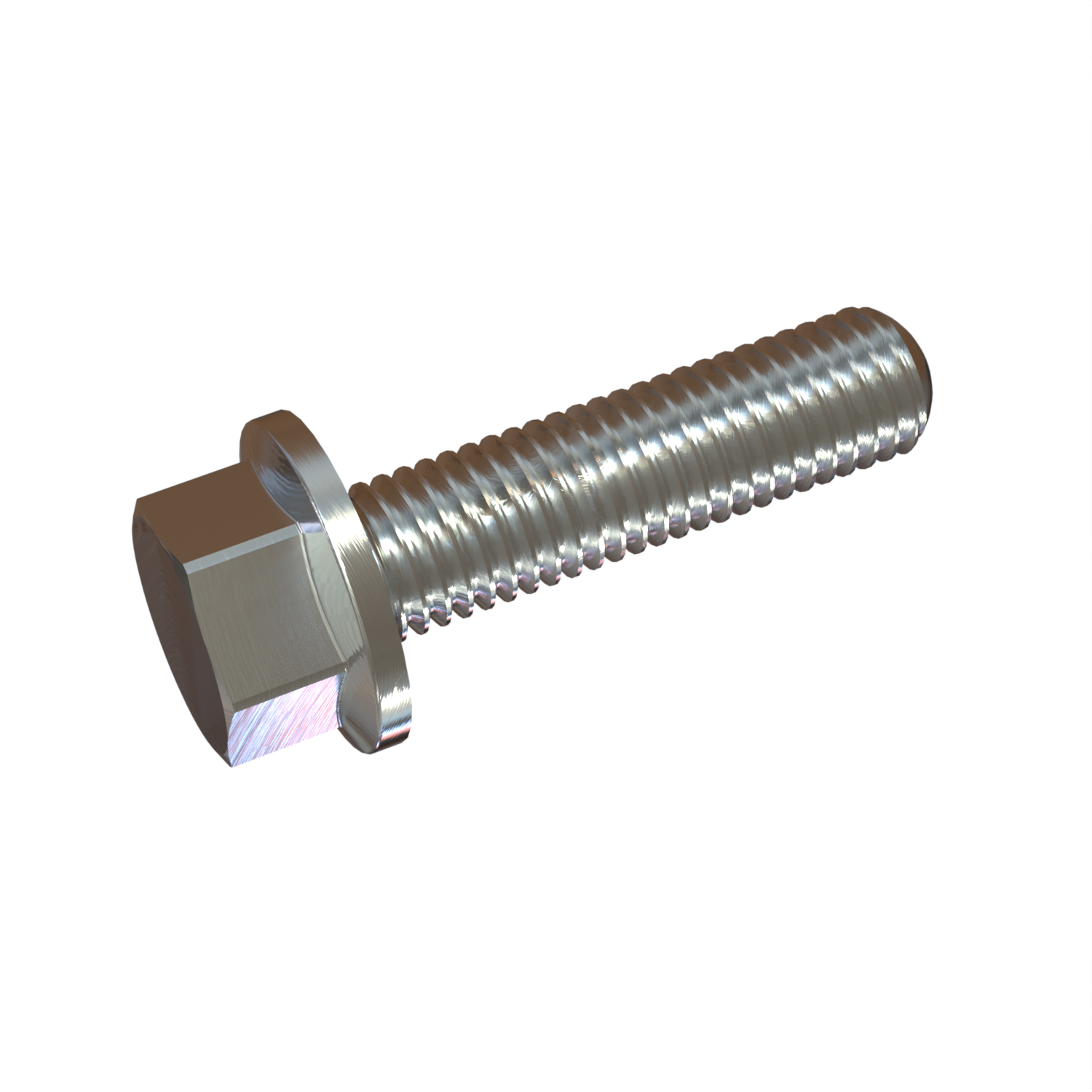

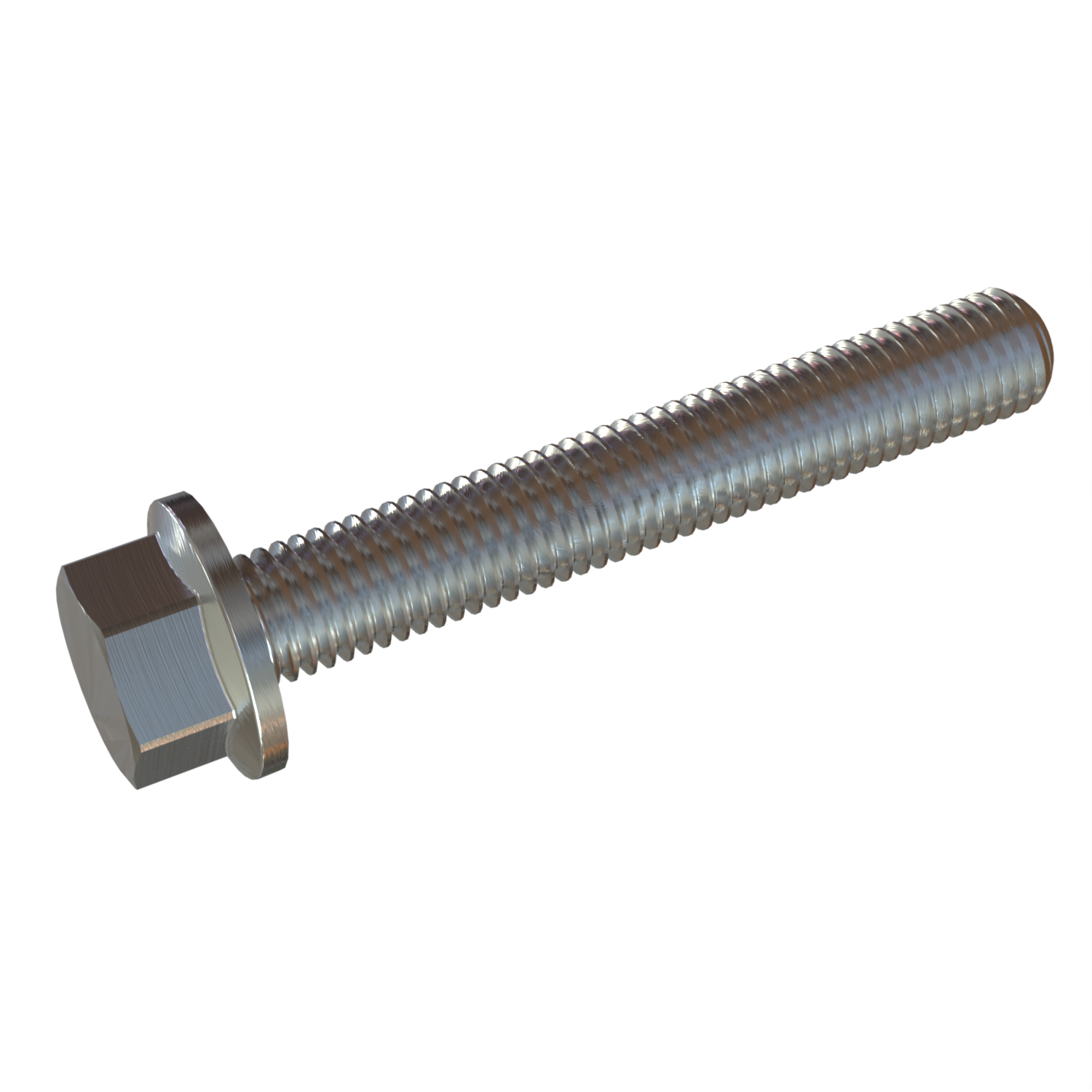

SPARE CLAMP SCREW (BB1X-CSCR)
$8.00
SPARE CLAMP SCREW (BB1X-CSCR)
Read More
SPARE RAM SCREW (BB1X-RSCR)
$8.00
SPARE RAM SCREW (BB1X-RSCR)
Read More
SPARE EXTENSION SPRING (BB1-ES)
$4.00
SPARE EXTENSION SPRING (BB1-ES)
Read More
SPARE HINGE PIN (BBX-HP)
$5.00
SPARE HINGE PIN (BBX-HP)
Read More
  • 5 stars: 199 (89%)
  • 4 stars: 20 (9%)
  • 3 stars: 0 (0%)
  • 2 stars: 2 (1%)
  • 1 star: 2 (1%)
Some of the reviews shown are from related products the merchant grouped with this one.
C
Cameron Clarke

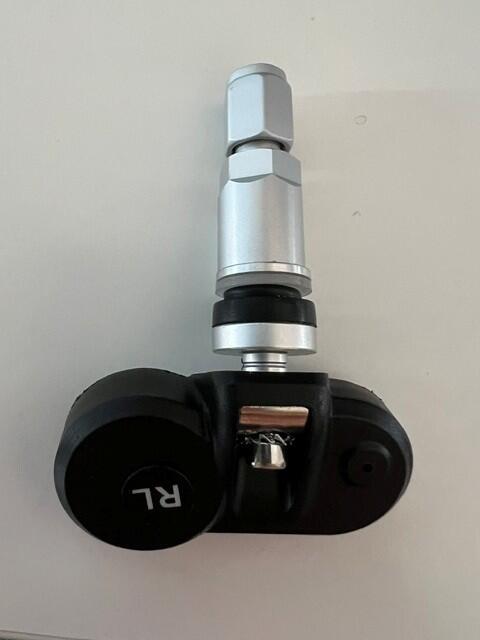

I have had tyres i could not change before i purchased the beadbuster. Now its no problem. I was even able to use it to fit valve stem type TPM sensors and no damage to the rim. Recommended

A
Anonymous

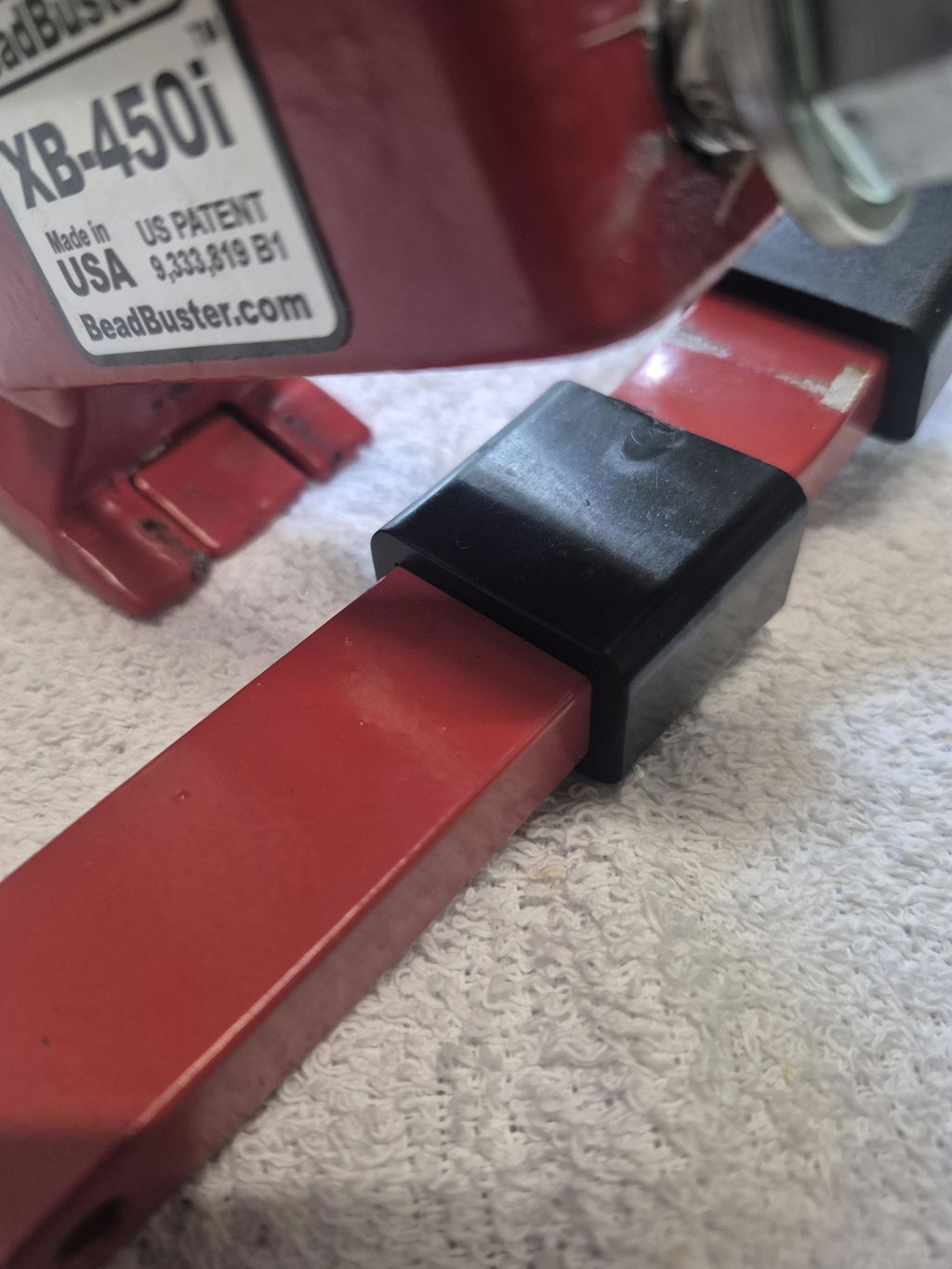

Used on a 2009 FEH Limited with stock rims. Worked great! Easy to use but the paint got chipped off the tip of the foot where it goes between the tire and the rim. The long arm was necessary for these tires (short arm was definitely not long enough) but its padding was in the wrong place or its shape was not quite right - the arm still contacted the rim between the black pads and chipped the paint. I had to use a towel between the arm and the rim to prevent damaging the tool or my rim. The tool itself works fantastic with the help of some wood blocks to keep the tire from reseating as you go around it. As long as you read the instructions and take your time to make sure you're doing it right and not going at it as if you're on an Indy pit crew, this tool works great. It doesn't take up any workshop space and fits in a toolbox nicely.

A
Anonymous

It worked flawlessly. I got the extension for my Chevy Silverado. It allowed me to break the bead on the outside of the rim without damaging my paint. At first I thought I needed two but you don't just put it on break the bead a little bit then started stepping on both sides of the bead buster on the tire. came off in seconds wonderful product thank you.

J
Jake Parry

I have the older model but I love the tool. Removes crusty 40yr old tires off 6-7” wheels I’ve removed them off. 6yrs old still works great! Highly recommend and would buy again. More than paid for itself. BUY IT!

C
Clintwilliams

Love it! Light weight, easy on the hands! Just work your way around the tire.

B
Brandon

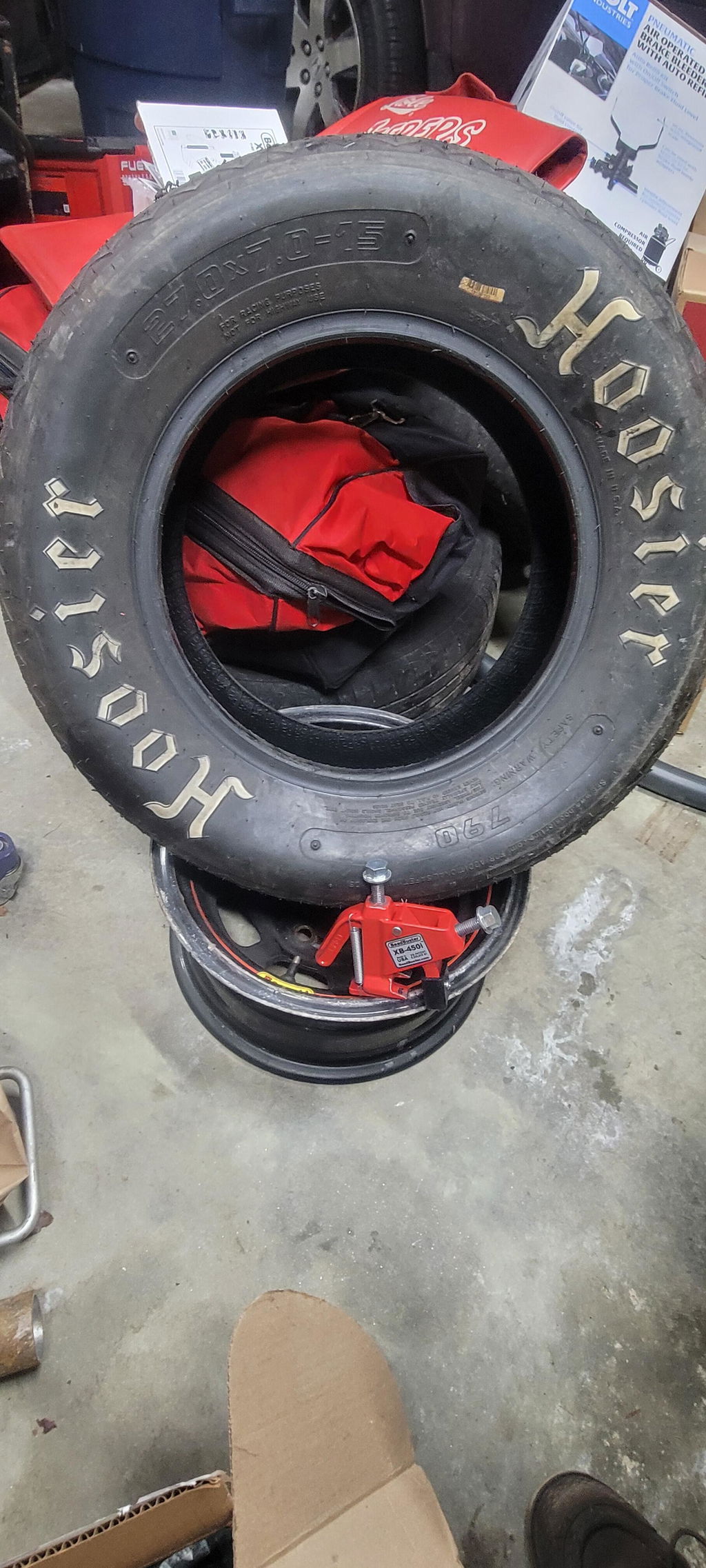

Works awesome! I use it primarily for Hoosier 970 race tires. I had a set of tires that had been mounted on a race car that was stored outside for years. Water had gotten into the beads and caused rust issues. I couldn't get the beads to break free with the bead breaker on a tire machine. The spoon just kept sliding into the sidewall and I damaged a couple tires. The xb450 broke down the beads with almost no trouble at all. Just had to work around the wheel a little bit at a time. Highly recommend this tool if you need a way to change tires at home or at the track. I've also used it to change a 12.4-28 tractor tire on my old Ford N series.

c
cwillette888

Had mine for a little over a year now. Came in clutch last week when I was doing all 4 sets of wheels for the new season. Removed all 16 tires with tire blocks run flats in them. Highly recommend greasing up the main foot and bolt if doing multiple tires. Small enough to travel with me in the trailer tool kit.

S
Steve Dempsey

The best bead breaker out there! Been racing and running off-road cars for 40+ years now, tried many of the different styles, from the long lever type that you have to stand on to a sledge hammer, the BeadBuster is the easiest and fastest. This tool will allow a 5 year old to an 80 year cold to break a bead! I’ve been using this for over 10 years now, and no, I wasn’t paid to say this and do not work for them! Just giving credit where credit is due!

S
Scott Bernier aka Scotty Don't

Really excited to have this in my arsenal for this upcoming race season!!!! Being able to break down beads and swap tires is So clutch !!!

J
Jerry Schnell

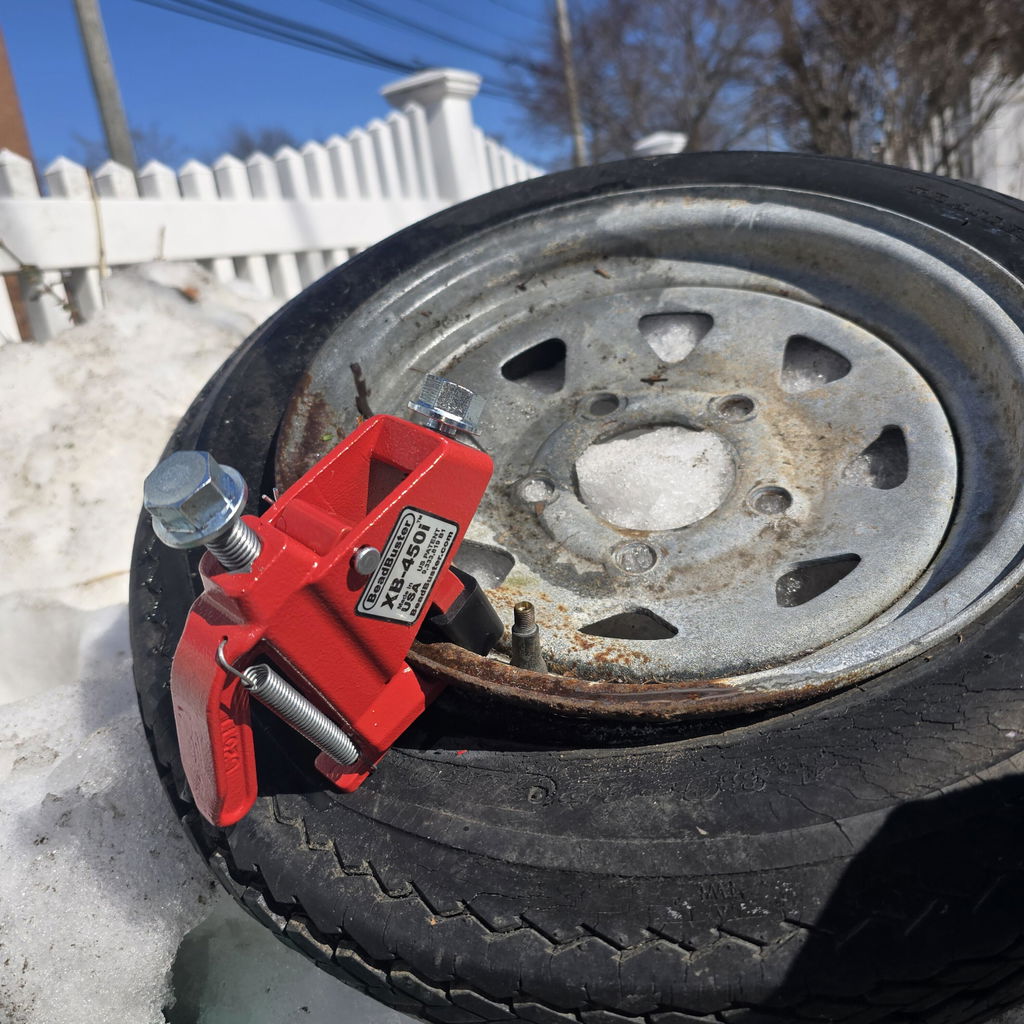

As a retired Mechanic, Ive gotta say this thing is awesome! I broke down an old rusty trailer wheel as a test. Broke the bead 1st try! Great tool for the garage!

R
Rand Al Thor
Works Really Well!

I bough a Vevor version of this and could not get it to work and threw it away. I did more research and found the BeadBuster. I called the company to inquire which would work best for me. They called me back and gave great advice. Upon arrival, I tried it out and it worked wonders from the get-go. I needed this to access dead TPMS sensors and replace them. It was fantastic. Solid built, comes well lubricated, good tolerances and a 3/4 socket on an impact wrench makes it fast.

C
Craig M.
It Worked, But Only With a Critical Modification!

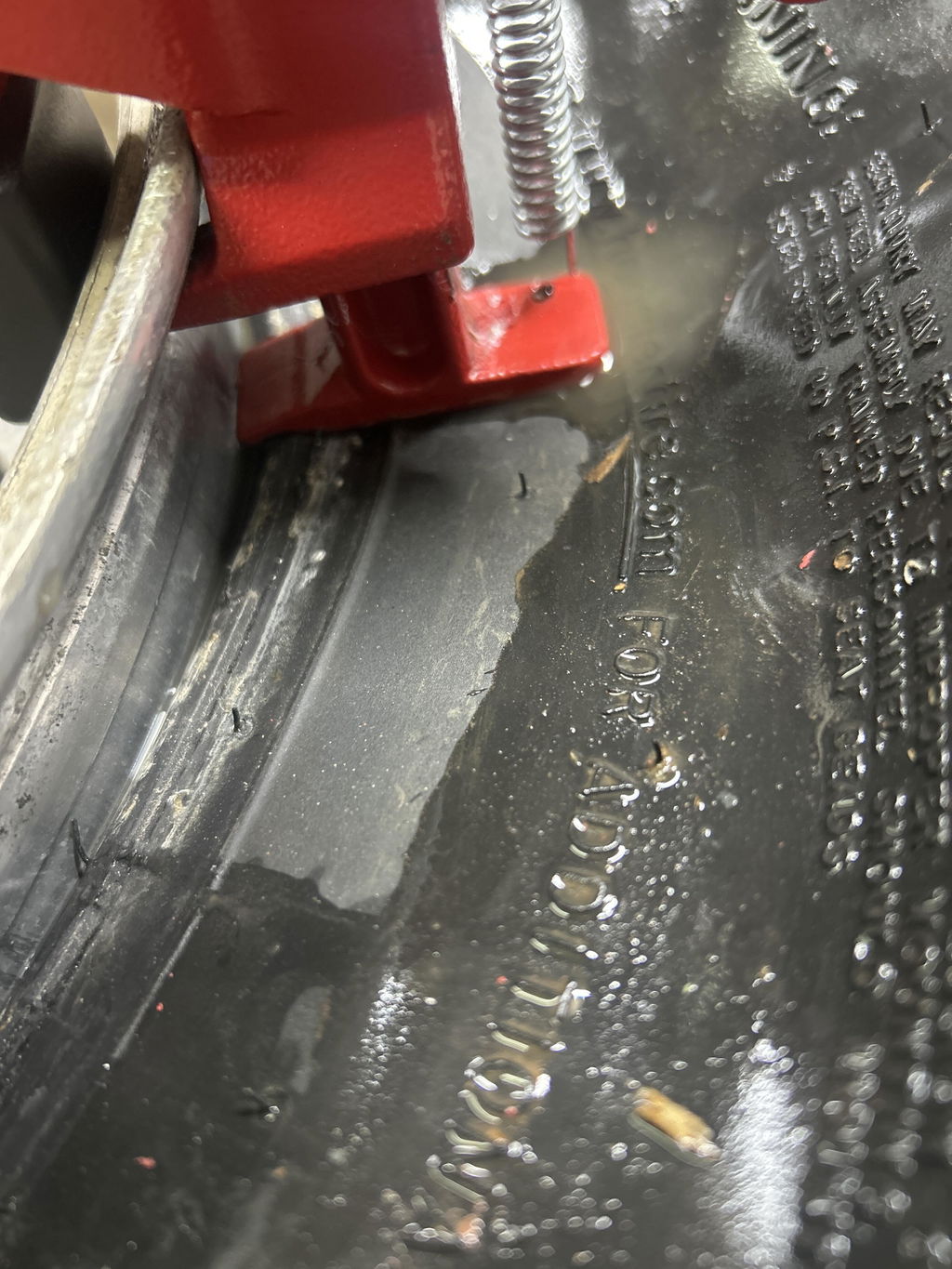

I purchased this product to install new TPMS sensors on our 2017 Ford Explorer with 20" alloy wheels. I also purchased the the Extended Clamp Arm (BB1X-CAE) since the alloy wheels have a curved edge.After laying the tire down on the floor, with the wheel face up, I sprayed soapy water around the edge of the rim. I then inserted the Bead Buster under the rim and followed the instructions to the letter. I used a 3/4" socket and ratchet to slowly lower the ram foot against the side of the tire. With a flashlight I checked how the bead was doing and noticed that the lip of the ram foot was too short to rest on the tire bead next to the rim! I only was pressing on the sidewall of the tire, which concerned me. No amount of adjusting the tool would allow it to rest on the tire bead. I then decided to loosen the Bead Buster and insert a flat bar underneath it so that the edge of the flat bar would rest on the tire bead at the rim. It worked! I then placed a 1x2" board between the rim and the compressed tire before removing the BB tool and flat bar. I then repeated this approach in a second location. First, using the BB tool to soften and push down the tire. Then loosening the BB tool and pushing the flat bar underneath the tool to the rim on top of the tire bead. I then would put a 1x2" board in the second spot before moving on to a third and final location. I did this with all 4 tires and the Bead Buster tool worked, but only with the modification of using a flat bar! I have no doubt that using the tool alone would not have broken the bead since the lip of the tool wasn't long enough to rest on top of the tire bead. Furthermore, the fact that the ram foot was pressing solely on the sidewall could have resulted in damaging the tire and causing a major expense, since on our car all 4 tires have to be changed at the same time.
