XB-650i Industrial Tire Bead Breaker (MADE-IN-USA for Large 1, 2 & 3-PC Wheels)

THE XB-650i IS AVAILABLE FOR PRE-ORDER NOW!  We are currently in Pre-Production.  We have fully evaluated a functional prototype, and are in the middle of field testing 10x 1st Article Units off of production tooling.  After quick and successful evaluation of those, we will proceed with full production, which is expected to be complete and ready to ship by early December, 2026.

By placing a Pre-Order, you WILL NOT BE CHARGED until the production tools are ready to ship, but you are agreeing to be automatically charged when they are all ready.  You can cancel at any time.  This allows us to gauge early customer interest and adjust the production volume accordingly.

The First Manual Bead Breaker Powerful Enough to Replace Hydraulic Tools

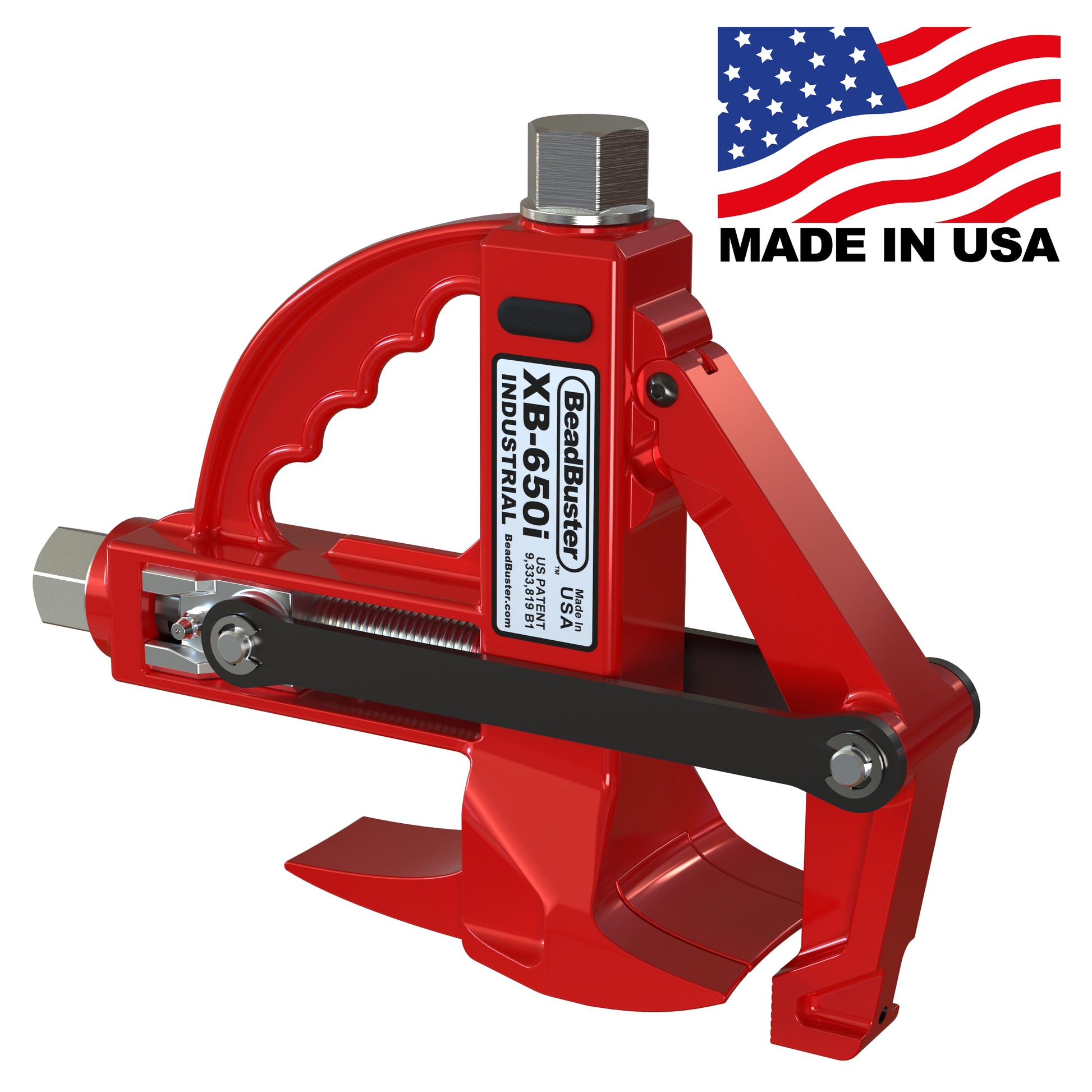

The BeadBuster XB-650i is a revolutionary, patent-pending manual tire bead breaker engineered specifically for large 1-PC, 2-PC, and 3-PC wheels.

At just 13.3 lbs, it delivers 15.7 tons of clamp force and 28.7 tons of ram force — more power than most hydraulic tools, at less than half the weight and half the cost.

No Hoses. No Pumps. No Generators. Just a Cordless Impact Wrench.

Direct Replacement for Hydraulic "Combi", "Max" & "Euro" Style Tools

For use on:

• Farm Tractors
• Agricultural & Industrial Tires
• Heavy OTR (Off The Road) Tires
• Skid Loaders
• Fork Lifts
• Military Transport Vehicles
• Heavy, Highly Modified Trucks (Monster Trucks)
• Semi Tractor Trailers
• Telehandlers
• Articulated Haulers
• Graders
• Wheel Loaders
• Mining Equipment

BEADBUSTER XB-650i FEATURES:

• Proudly Made in USA
• Ultimate Rugged Design, Engineered for Large 1, 2 & 3-PC Wheels
• 2-sided Ram Foot that replicates the geometry of Hydraulic Combi/Maxi/Euro-Style Tools

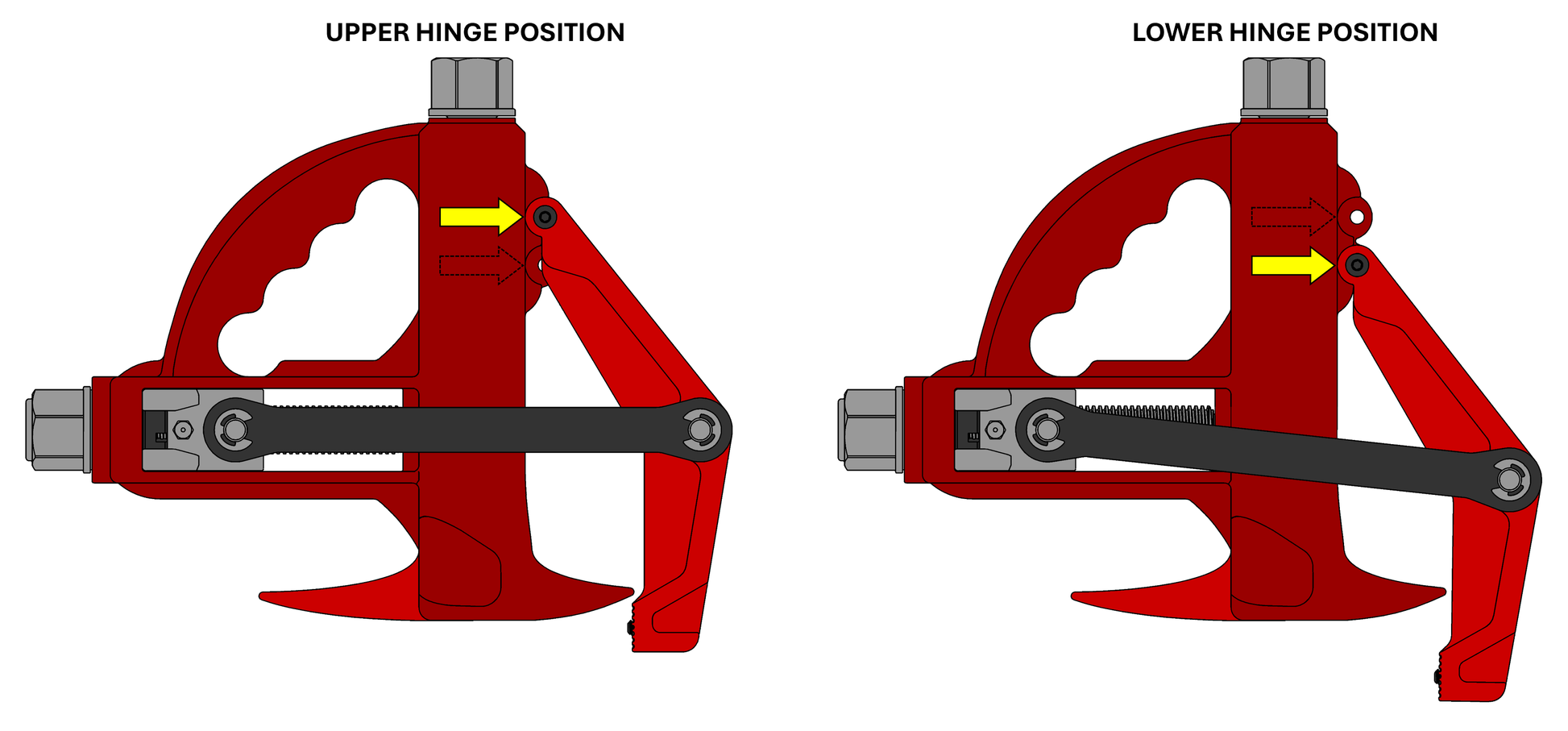

• Dual-Position Clamp Hinge for versatility including wheels with wide flanges
• Premium Build Quality, 3 Year Warranty
• Made from Investment Castings Hardened with Chrome-Moly Steel (AISI 4140, HRC 30)
• Custom ASTM-A574 Acme Screws for Ultimate Thread Strength
• Clamp Straps made from Ballistic Grade AR500 Steel
• Polyester Powder Coat Finish
• All-New Patent-Pending Design

SPECIFICATIONS:

• Weight: 13.3 lbs
• Size: 11″ x 9″ x 3″

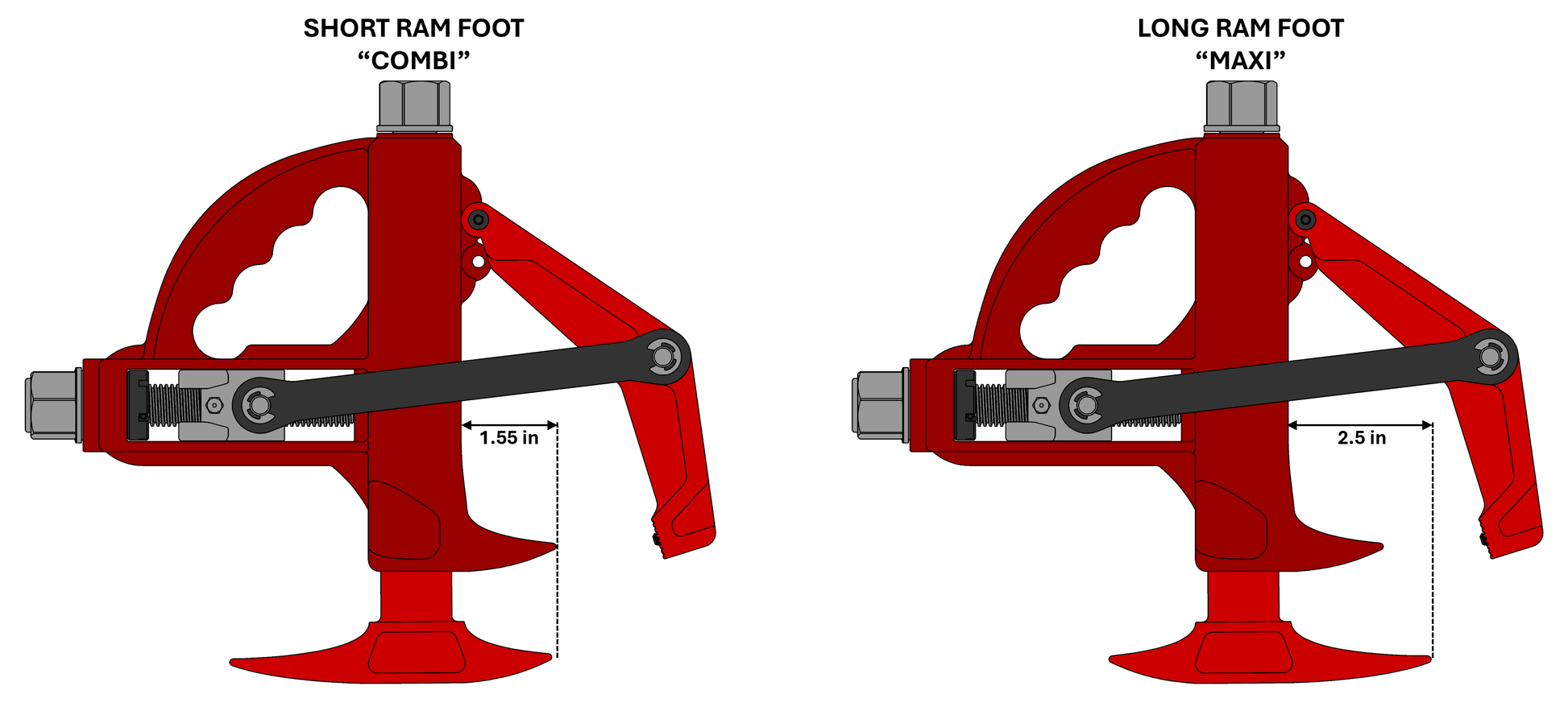

• Max Rim Lip Depth Range (foot length): 1.55″ to 2.50″
• Max Rim Lip Width (clamp opening): 4.75″
• Max Ram Extension: 4.0″
• Max Clamp Force: 15.7 tons
• Max Ram Force: 28.7 tons

>> SEE DIAGRAMS AND DEFINITIONS OF TIRE & WHEEL FEATURES <<

DETAILS:

• The BeadBuster XB-650i is a heavy-duty, fully manual tire bead breaker designed specifically for large 1-PC, 2-PC, and 3-PC wheels used on tractors, wheel loaders, skid steers, telehandlers, heavy trucks, haulers, mining equipment, and other industrial machinery.
•
  At only 13.3 lbs, the XB-650i delivers 15.7 tons of clamp force and 28.7 tons of ram force with a full 4-inch stroke. This level of performance rivals or exceeds most hydraulic bead breakers, yet it requires nothing more than a standard 1/2" cordless impact wrench.
•
  Built in the USA from high-strength 4140 investment castings, the XB-650i incorporates several patented and patent-pending features including a moving clamp carrier with perpendicular strap actuation, a dual-position clamp arm hinge, a floating ram nut with thrust bearing, and robust screw retention systems. These innovations provide smooth, reliable operation and outstanding long-term durability.

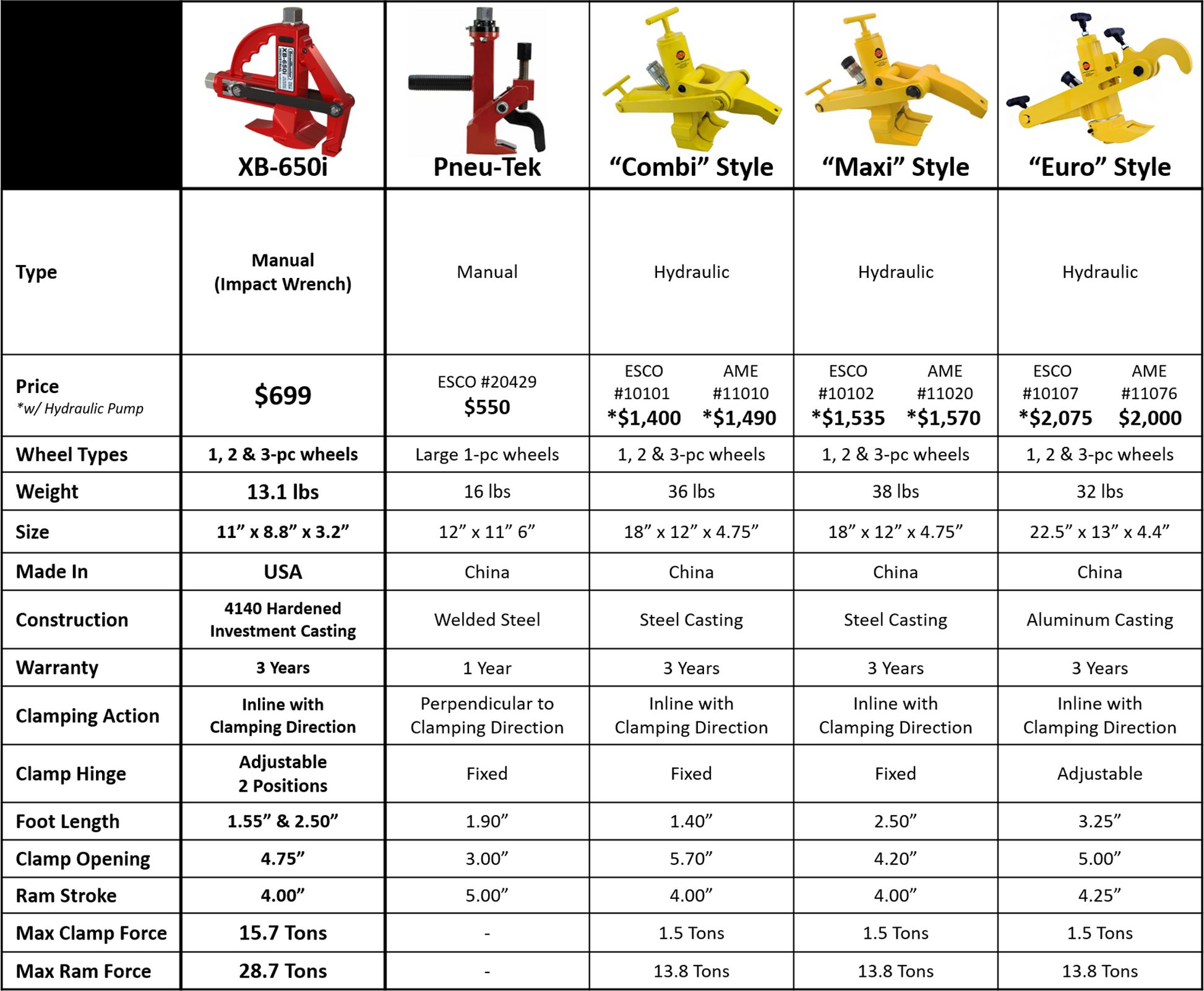

XB-650i ADVANTAGES:

• Under Half the Weight — At just 13.3 lbs (vs 30–40 lbs for hydraulic tools), the XB-650i can be used one-handed and is truly portable for field service.
•
  Over Double the Power — Delivers 28.7 tons of ram force compared to ~13.8 tons on the largest hydraulic tools.
•
  Independent Clamp & Ram — You decide when clamping is complete. Unlike hydraulic tools with an automatic pressure valve (limited to ~1.5 tons clamp force), the XB-650i produces a full 15.7 tons of clamp force with complete operator control.
•
  Under Half the Cost — At $699, the XB-650i is far more affordable than $1,400–$2,000+ hydraulic systems (plus pump).
•
  Freedom from Hoses & Equipment — All you need is a cordless impact wrench and a 1-1/8" socket. No pumps, hoses, compressors, or generators required.
•
  Built Tough & Made in USA — High-strength 4140 investment castings, AR500 clamp straps, and premium components backed by a 3-year warranty.

HOW IS THIS POSSIBLE?

• For years, the only real option for breaking beads on large multi-piece wheels was a hydraulic bead breaker. While effective, those tools are heavy, expensive, and require significant support equipment.
•
  After 8 years of development, we found a better way.
•
  We adapted the proven perpendicular clamp strap geometry used in commercial hydraulic tools and engineered it for fully manual operation using heavy-duty threaded screws. By combining smart mechanical design, high-strength materials, and precision investment casting, we were able to create a tool that is dramatically lighter, more portable, easier to use, and significantly more affordable — while actually delivering higher clamp and ram forces than most hydraulic units.
  The result is a bead breaker that gives professional mechanics full control, excellent portability, and hydraulic-level performance without the traditional drawbacks.
