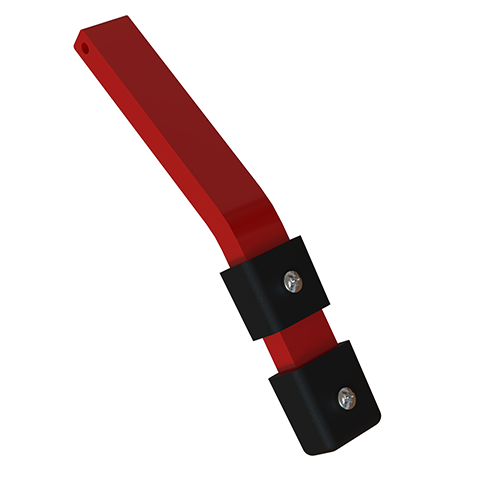

EXTENDED CLAMP ARM (BB5X-CAE)

Extended Clamp Arm
Accessory for Models:

• XB-550i HD  Extended Arm for Automotive Wheels
• XB-550 HD (Discontinued)
• XB-554 PRO (Discontinued)


FEATURES:

• Ultra-Durable Alloy Steel Construction (AISI 4140 Chrome-Moly)
• Polyester Powder Coat Finish
• The Spare Clamp Arm for BeadBuster XB-550i HD (and old XB-550, 554 PRO models).  The original clamp arm may need to be replaced from damage due to excessive clamping force. Spare Hinge Pins are sold separately.

SPECIFICATIONS:

• Weight: 1.2 lb
• Length: 8.5 in

DETAILS:

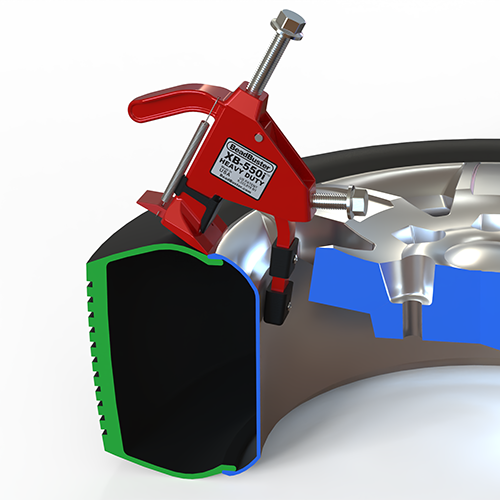

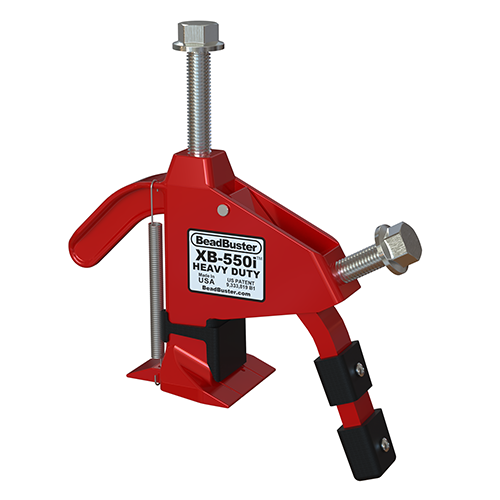

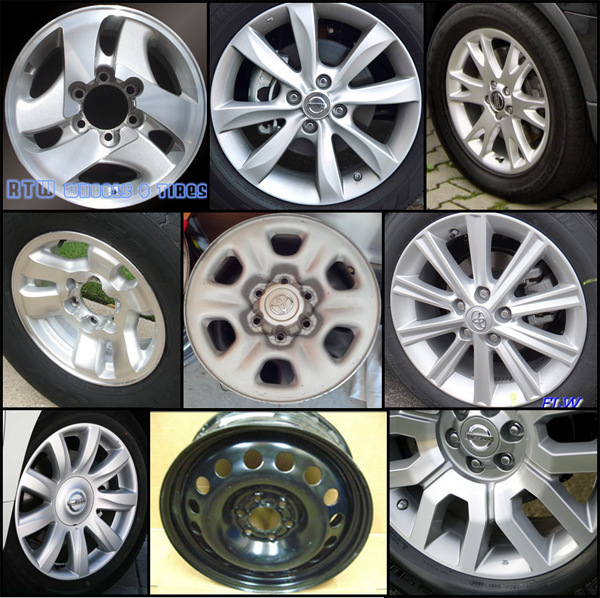

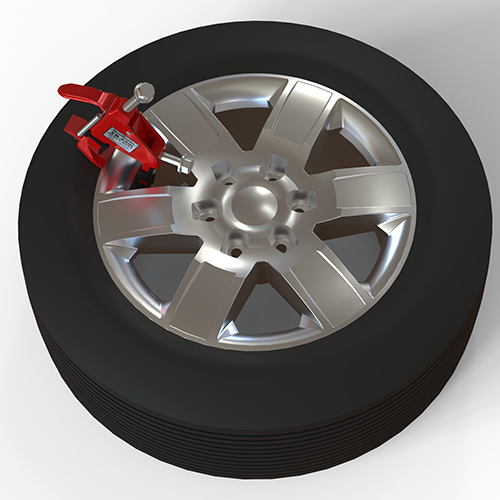

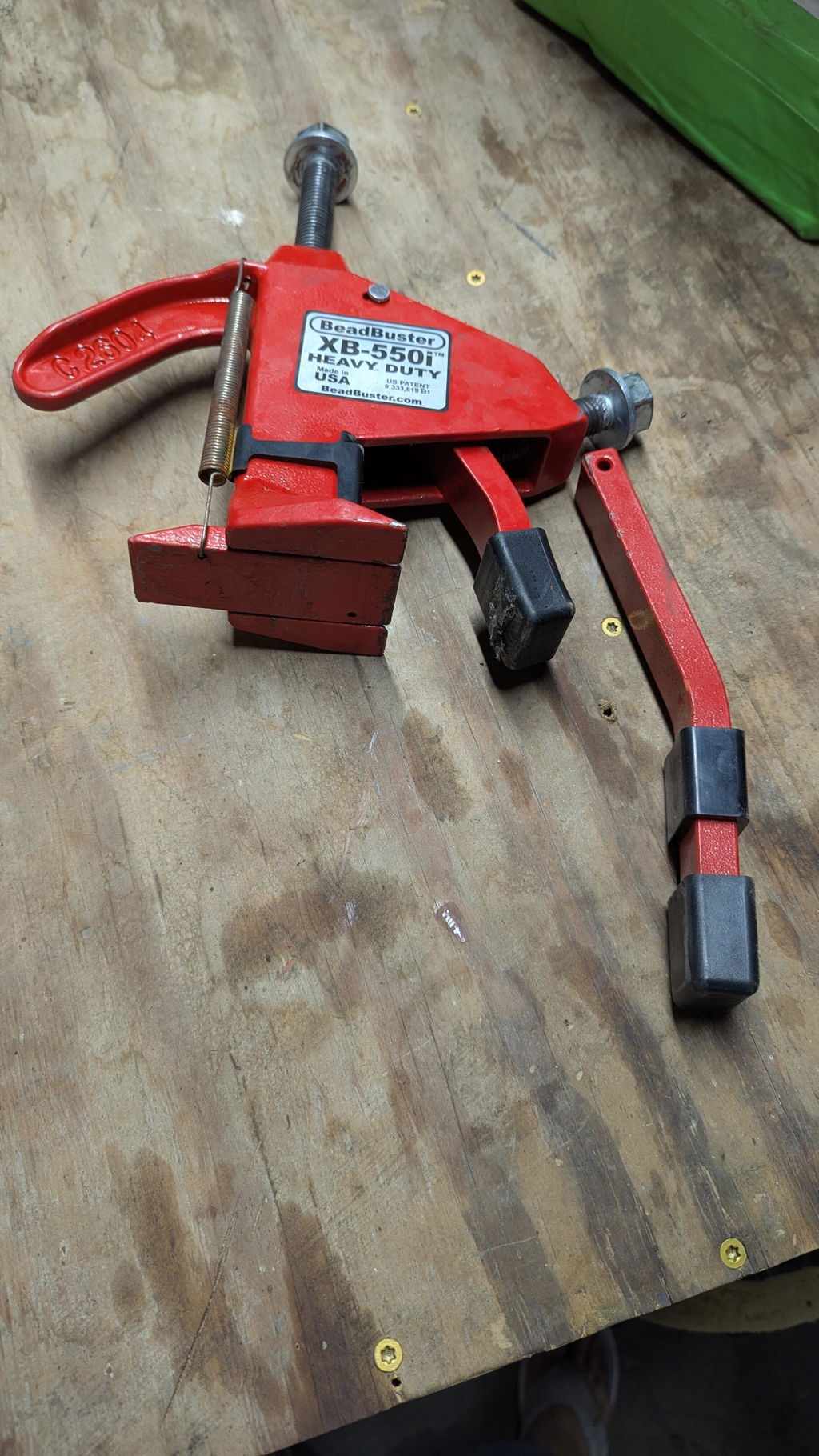

The Extended Clamp Arm fits the BeadBuster XB-550i HD (and old XB-550 & 554 PRO models).  It can be installed on these large frame (55x series) tools to be effectively used with certain automotive wheels which have curved or angled clamping surfaces that make the standard, shorter, clamp arm difficult to use. The long clamp arm will project about 3″ below the feet of the 55X tools, and contact the rim further down where the clamping surface is more parallel to the tool axis. (See Illustration)

     *NOTE* this has been proven to be an effective solution for these difficult rim shapes, but extra care must be taken when clamping because the clamp force will tend to rock the tool backwards, away from the rim, possibly causing the ram foot to miss the bead bundle.  The tool still needs to be aligned perpendicular to the face of the rim to properly break the bead; additional care and manual pressure may be required to ensure alignment.
